Acuity -8AN to -8 ORB Adapter (1913-F04)

-8AN to -8 ORB Adapter by Acuity

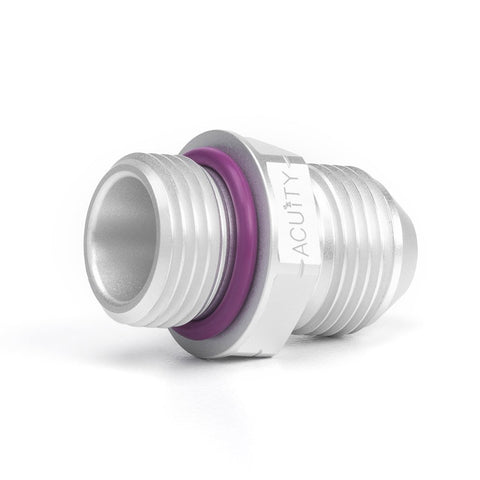

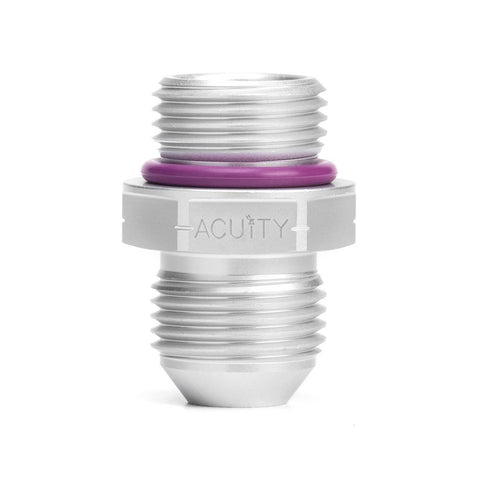

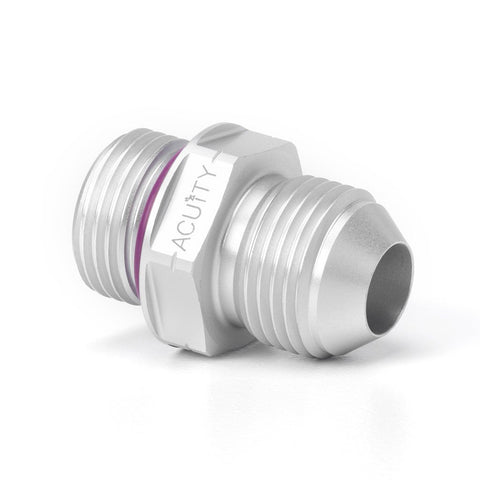

ACUiTY's -8AN to -8 O-Ring Boss (ORB) adapter is made from 7075-T6 aluminum for strength with a gently tapered interior for maximum flow. A silver anodized finish ensures high cosmetic quality and resistance to oxidation.

These were designed for use with ACUiTY's K-Series Fuel Rails, but they are perfect for use in any gas, ethanol, or gas/ethanol mix fuel system where a -8 ORB port must be adapted for a -8AN fuel line (which is a common size used in very high horsepower applications).

The fitting comes supplied with a -908 FKM o-ring that is gasoline and ethanol (and E85, etc) compatible. Additionally, each fitting is designed with a flange at the base of the 7/8" hex to help protect against scratching the part the fitting is being threaded into during tightening.

Features

• Fits in all fuel rails and other fuel system components that accept -8 ORB fittings
• Adapts -8 ORB ports to -8AN for use with -8AN fuel lines
• 7075-T6 Aluminum construction for added strength over traditional 6061-T6 fittings
• Gently tapered interior for maximum flow
• Anodized for durability
• Flanged hex to help avoid wrench damage during installation
• Supplied with ethanol-safe FKM o-ring
• 7/8" Hex Drive

Applications

• Universal

What's In The Box?

• 1 - -8AN to -8 ORB Adapter

Warranty

• All ACUITY products are covered by a 1-year warranty against manufacturer defect.
