Acuity 0-100psi Fuel Pressure Gauge (1941)

0-100 psi Fuel Pressure Gauge

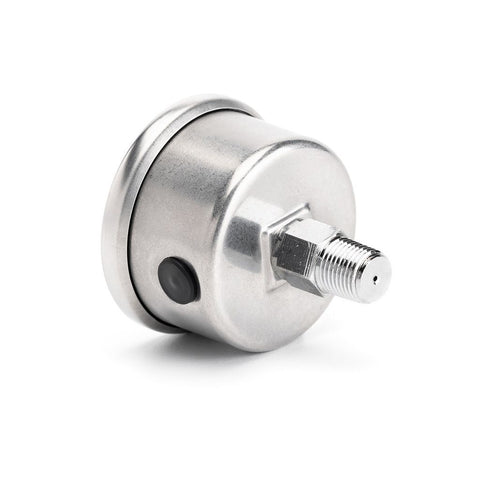

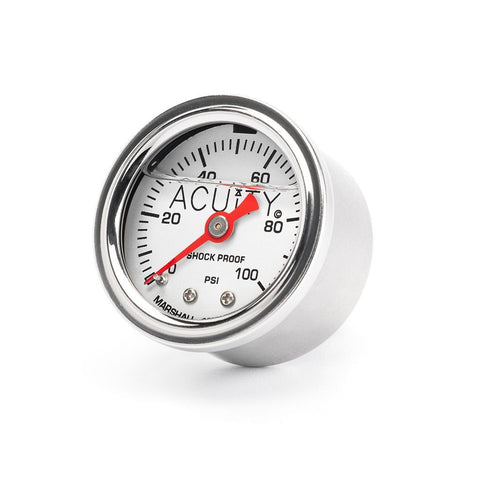

These fuel pressure gauges are designed to pair perfectly with both ACUiTY's fuel rails, as well as most other aftermarket fuel rails with 1/8 NPT gauge ports. To guarantee a quality product, ACUiTY has industry leader, Marshall Instruments, produce these gauges to ACUiTY's specifications. These fuel pressure gauges feature rugged construction and are liquid filled for vibration dampening. This model features a 1/8 NPT thread (compatible with our K-Series Fuel rails and many automotive fuel system applications). The gauge features a black bezel, red pointer, and satin black, powder-coated, steel case. The max bezel diameter is 1.75" and is the perfect size to pair with an ACUiTY fuel rail. These gauges are safe for use with gasoline and ethanol, so they will work in a variety of applications. If your fuel rail features -8 ORB ports but no 1/8 NPT ports, consider using ACUiTY's 1913-F05 adapter to allow placement of this gauge on a -8 ORB port on your rail.

Features

• Produced by Marshall Instruments to ACUiTY's specifications
• Liquid-filled to reduce needle bounce from engine vibration
• Satin black, powder-coated, steel case for durability
• 1/8 NPT male thread for use on most fuel rails and fuel pressure regulators
• 0-100 PSI safe operating range

Applications

• Universal

What's In The Box?

• 1 - Fuel Pressure Gauge

Warranty

• Acuity Limited Warranty
