ACT Twin Disc Heavy Duty Street Kit | 1997-2015 Chevy Corvette/Camaro (T1S-G05)
ACT Clutch Kits & Flywheels*SEE DETAILS
Twin Disc HD Street Kit - T1S-G05
T1S-G05 street, twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits endure an exclusive four-stage, heat-treating process on all diaphragms. The ACT twin disc kits features the ability to adjust for disc wear and provides equal disengagement for discs. The Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT twin disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may include a pilot bearing and release bearing.
Features
- Product Weight (lbs.) 45.8
- Torque Capacity (ft/lbs.) 891
- Torque Capacity Over OE 86%
- Input Shaft Diameter (Inches) 1-1/8
- Friction Surface Diameter (mm) 267
- Item Description Twin Disc HD Street Kit
- Friction Surface Diameter (Inches) 10.5
- SFI 1.2
- Disc Type Street Disc
- Tooth Quantity 168
- Spline Count 26
Benefits
- Feel: Light pedal effort, smooth engagement, OE to mild gear rattle
- Life: Disc surfaces doubled for better wear, heat capacity and longer life, further extended by ACT's exclusive diaphragm design
- Quality: Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade
- Recommended Use: Recommended for high horsepower street or race use
- ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Applications
- 1998-2002 Camaro Z28 / Z28 SS
- 2010-2015 Camaro SS
- 2014-2015 Camaro Z/28
- 1997-2013 Corvette Base
- 2001-2004 Corvette Z06
- 2006-2013 Corvette Z06 / Carbon
- 2010-2013 Corvette Grand Sport
- 1998-2002 Pontiac Firebird Formula / Trans Am
- 2004-2006 Pontiac GTO Base

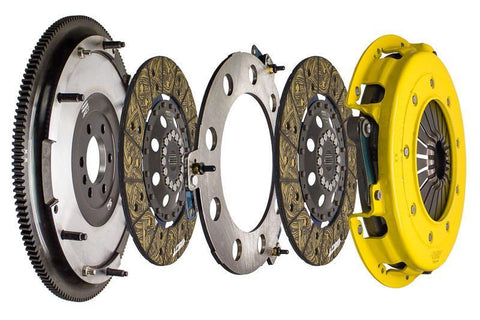

What's In The Box?
- (1) Twin Disc Clutch Kit
- (1) Streetlite Flywheel
