ACT HD Race Clutch Kit w/ Sprung 6-Pad Disc | 2017-2023 Honda Civic 1.5T and 2017-2023 Honda Civic Si (HC10-HDG6)

2017-2021 Honda Civic 1.5T / Si & 2022+ Honda Civic 1.5T / Si Heavy Duty Race Clutch Kit by ACT

This kit features ACT's Heavy Duty pressure plate paired with their ceramic 6-pad sprung race disc.

ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

• Feel: Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
• Life: Moderate friction life, extended by ACT's exclusive diaphragm design
• Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
• Recommended Use: Recommended for high horsepower street or race use
• ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Benefits

• Torque Capacity (ft/lbs): 464 ft/lbs
• Torque Capacity (% Over OE): 109%

Please Note: Must use ACT flywheel (included in kit).

Applications

• 2017-2021 Honda Civic 1.5T
• 2017-2021 Honda Civic Si
• 2022+ Honda Civic 1.5T
• 2022+ Honda Civic Si

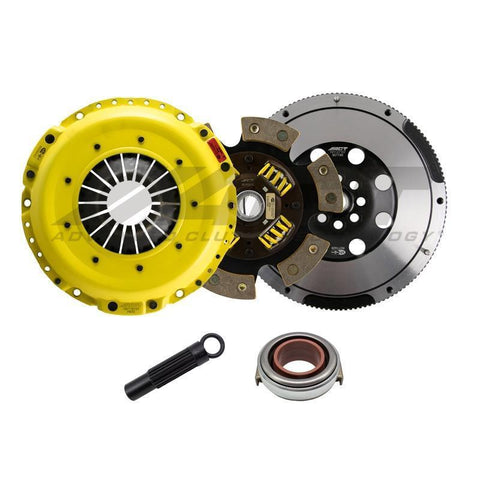

What's In The Box?

• 1 - Heavy Duty Pressure Plate
• 1 - Sprung 6-Pad Race Disc
• 1 - Streetlite Flywheel
• 1 - Release Bearing
• 1 - Pilot Bearing
• 1 - Alignment Tool

References

• Installation Instructions

Warranty

• ACT warrants all products to be free of defects in materials and workmanship for normal use and service for a period of one (1) year from retail purchase.
