ACT 6 Puck Sprung Disc Clutch Kit | 2003-2006 Nissan 350Z (NZ1-XTG6)

NZ1-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

• Feel - Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle
• Life - Moderate friction life, extended by ACT's exclusive diaphragm design
• Quality - Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
• Recommended Use - Recommended for high horsepower street or race use
• ACT Difference - 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Specifications

• Torque Capacity (ft/lbs.) 745
• Torque Capacity Over OE: 83%
• Disc Type: Race Disc
• Spline Count: 24
• Spline Size (in.): 1
• Disc Diameter (in.): 9.8
• Disc Diameter (mm.): 250
• Pressure Plate Type: Xtreme

Applications

• 2003-2006 Nissan 350Z 3.5L V6

What's In The Box?

• 6 Pad Sprung Race Disc (6250306)

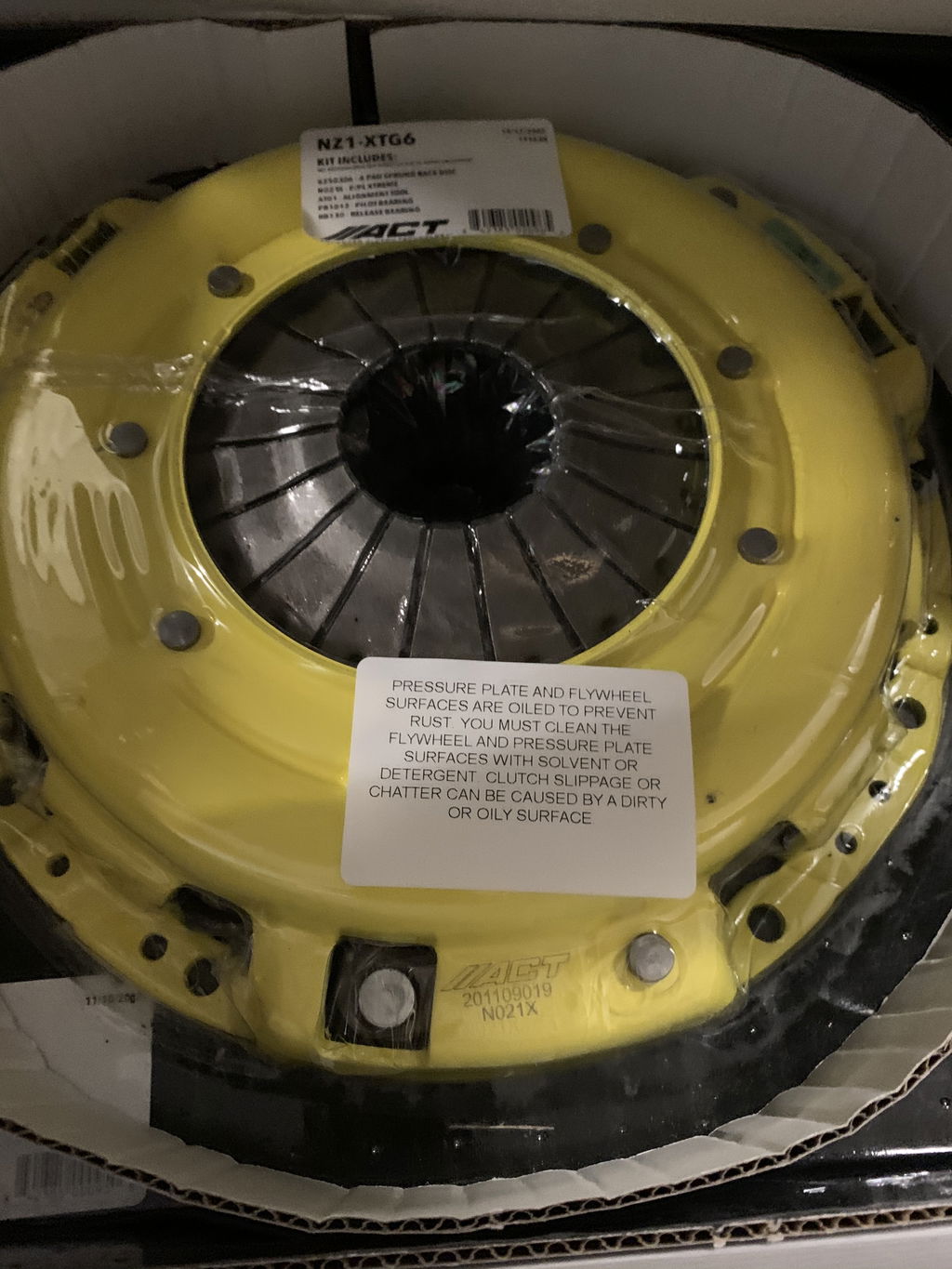

• P/PL Xtreme Pressure Plate (N021X)
• Alignment Tool (AT01)
• Pilot Bushing (PB1012)
• Release Bearing (RB130)

Downloads

Installation Instructions
