ACL Race Series Connecting Rod Bearing Set | Multiple Fitments (6B8100)

Race Series Connecting Rod Standard Size Bearing Set by ACL

Race Series Connecting Rod Bearing Set, Standard Size, 12 Pieces by ACL®. The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Race Series engine bearings. ACL Race Series performance engine bearings are recognized as a premier brand throughout the motorsports world. Race Series rod and main bearings are standard components in race engines that have set records and won championships from Mexico to Bonneville - from sport compact drift racing to small block NASCAR, IHRA and NHRA cmpetitions. The unique combination of design, metallurgy and engineering provides Race Series performance bearings witht he endurance and capability to perform where others cannot.

Features

• High strength overlay plate with reduced thickness for improved fatigue properties
• Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing
• Increased crush for improved bearing retention
• Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing
• Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films
• 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings
• Tight consistent wall tolerances to help you maintain consistent clearances
• Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts

Specifications

• Bearing Size: Standard
• Half Type: Identical halves

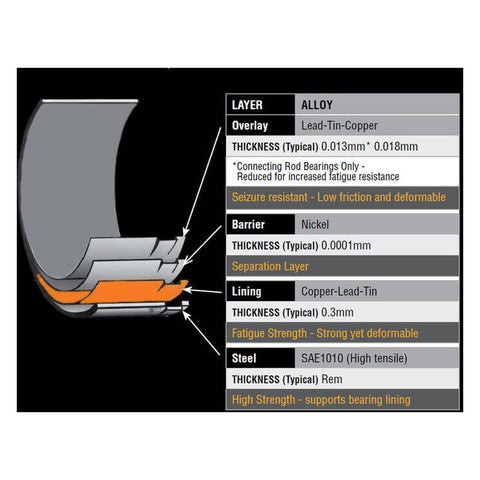

• Material: Tri-metal Hardened steel backs
• Min Std Shaft Size: 2.0465" / 51.981mm
• Max Std Shaft Size: 2.0472" / 52mm
• Min Std Tunnel Size: 2.1663" / 55.024mm
• Max Std Tunnel Size: 2.167" / 55.042mm
• Max Wall at Crown Size: 0.0588" / 1.493mm
• Max Overall Length: 0.7598" / 19.3mm
• Quantity: 12 Pieces

Applications

• 1993-1997 Lexus GS300
• 2001-2005 Lexus IS300
• 1992-2000 Lexus SC300
• 1998-2005 Toyota Aristo
• 1993-2001 Toyota Chaser
• 1992-2004 Toyota Mark II
• 1991-2000 Toyota Soarer
• 1993-2002 Toyota Supra
• 1990-1992 Toyota Supra 2.5L

What's In The Box?

• 1 Set - ACL Race Series Rod Bearings

Warranty

• Manufacturer's Warranty
