COLD AIR INTAKE - 2013-2021 BRZ/FRS/86
Design requirements for this intake were simple: The intake must not only be safe for the engine, but perform well both with and without tuning. The intake must be able to be installed quickly, without removal of the bumper. The intake must produce horsepower and torque gains throughout the RPM range, not just on the top end. Justification for the first is obvious, we want you to be able to bolt it on and go, without worrying about your air-fuel ratios and engine safety. Justification for the second came after installing other intakes, only to have our front bumper never fit the same way again. A little research showed that this was a common issue.

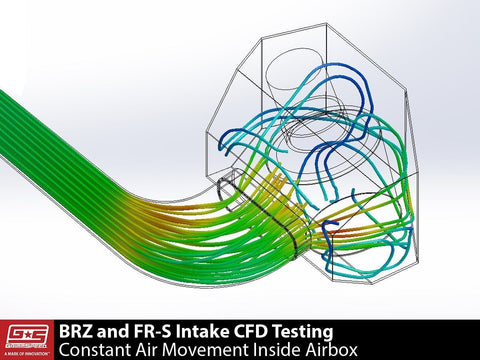

The design of this intake started with months of hands-on research. The entire development of the intake is chronicalled in great detail in our FT86Club thread where members helped with major design decisions. After the research stages and the determination that there was a gap in the intake market, we got to work with design. Using our FARO Arm, we were able to MAP the engine bay in 3D to ensure a perfect fitment. We used that working envelope to maximise performance by eliminating the 90 degree bend just before the airbox. We found that this contributed to decreased resistance, but also helped with accurate MAF readings. We placed the MAF sensor inside the airbox to ensure that the heat from the motor and headers didn't skew it's readings.

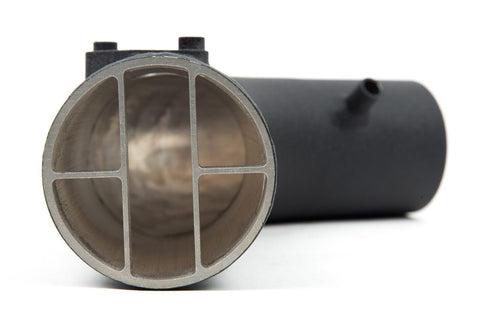

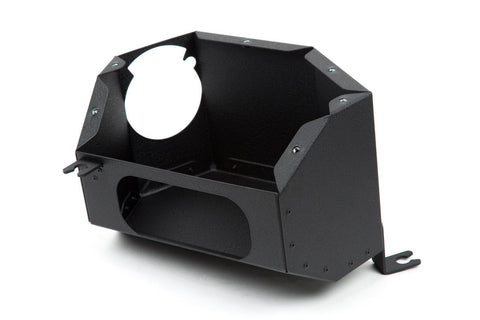

In true GrimmSpeed fashion, no corners were cut in the fabrication of each and every one of these intakes. The airbox is laser cut, CNC bent, riveted together and threaded inserts are installed before the entire assembly receives a heavy duty black wrinkle powdercoat. MAF flanges are CNC machined from 6061 aluminum and the intake tube is fabricated from custom bent tubing, made specifically for our application, to provide the perfect MAF diameter. The air straightener is laser cut from the same 6061 material and tumbled before the entire assembly is TIG welded by our expert welders. After welding, each tube is inspected and ported as needed to ensure maximum performance.
Features
- Installs easily without bumper removal - Don't ruin your bumper fitment like other intakes!
- Made in the USA - Right here in Minnesota, in fact
- 30min Installation - Extremely simple with our written and video guides
Benefits

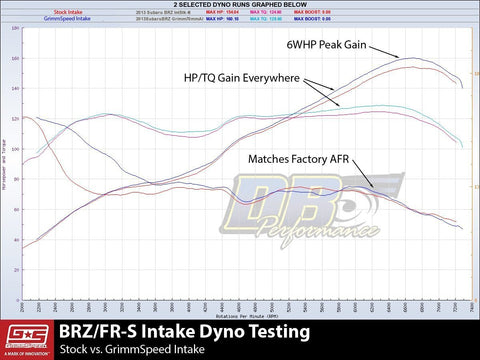

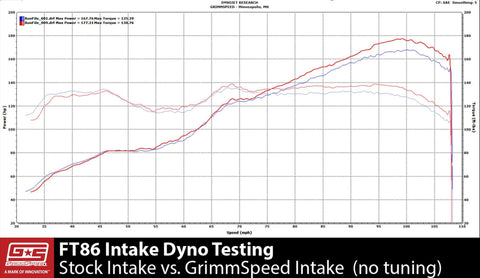

- Power and Torque Gains - Throughout entire rev range, no tuning required
- Mimics factory AFR - Safest intake on the market
Applications
- 2013-2016 Scion FR-S
- 2013-2021 Subaru BRZ
- 2017-2021 Toyota 86
What's In The Box?

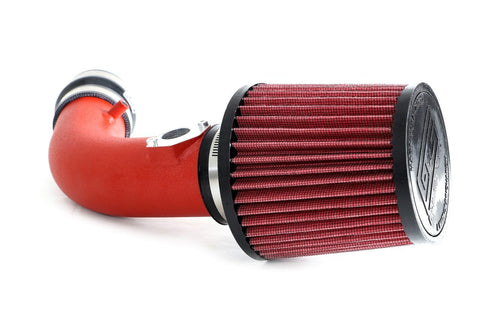

- (1) Intake Tube

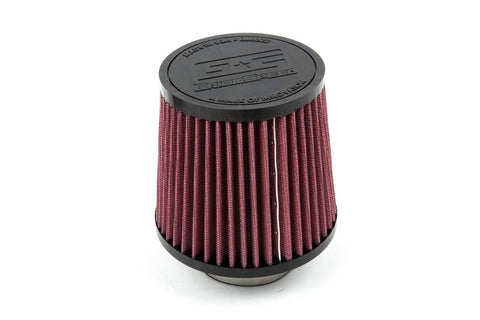

- (1) High-flow Oiled Filter
- (1) Hump Hose Connector
- (1) Airbox Assembly
- (3) Hose Clamps
- (1) PCV Hose Extension
- (1) PCV Clamp
- (2) MAF Flange Screws
- 3 ft Rubber Sealing Strip
- (1) Noise Generator Delete Plug
References
Warranty
- Manufacturer Standard Warranty
Customer Reviews

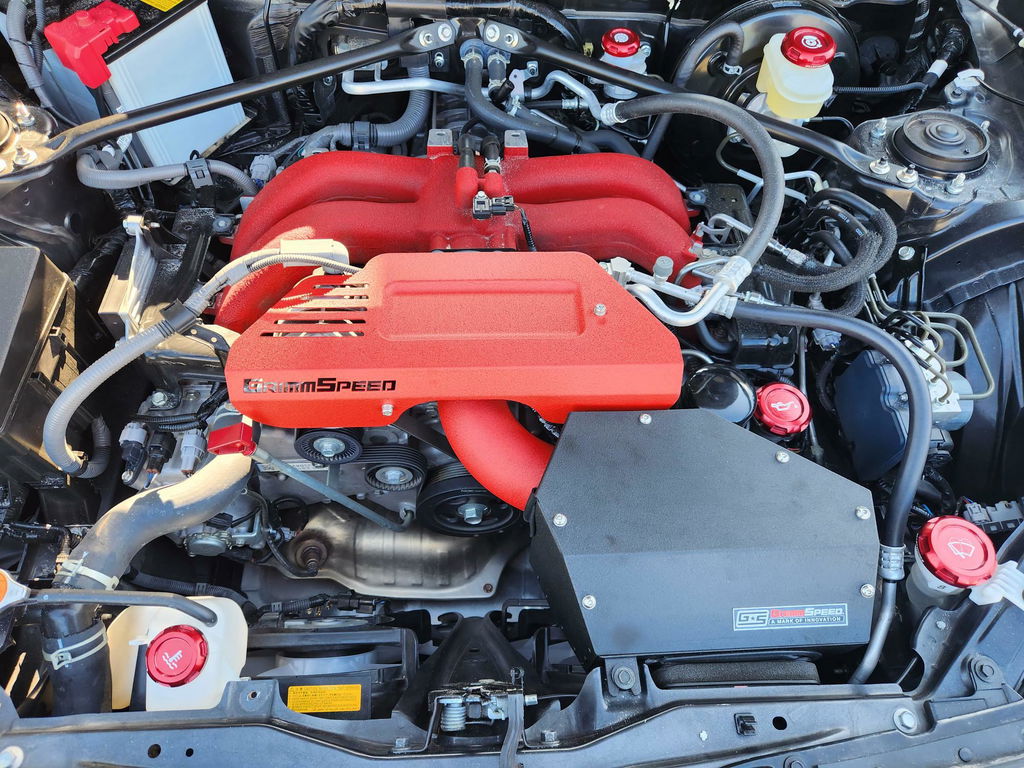

Super easy install and looks absolutely amazing, frees up so much space as well!!! Definitely recommend!
Love it

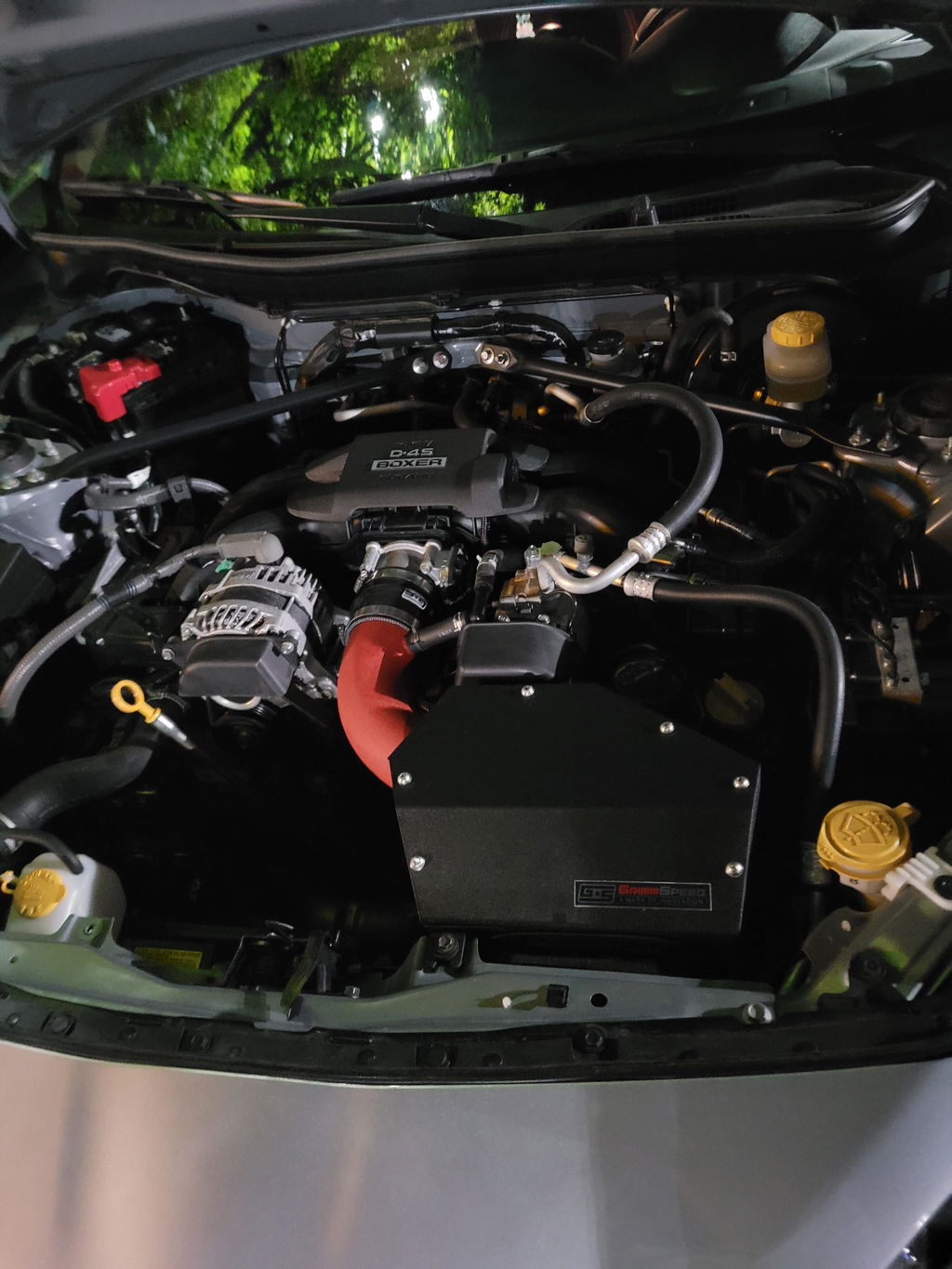

It looks really good in the red and install was plain and simple
Very noticeable difference, car wants to go and keep going which is incredible also adds a little growl almost ? Idk I love it.
The Grimm Cold Air Intake was a breeze to install. All the parts fit to Factory Specs. NO Issues with the Installation.

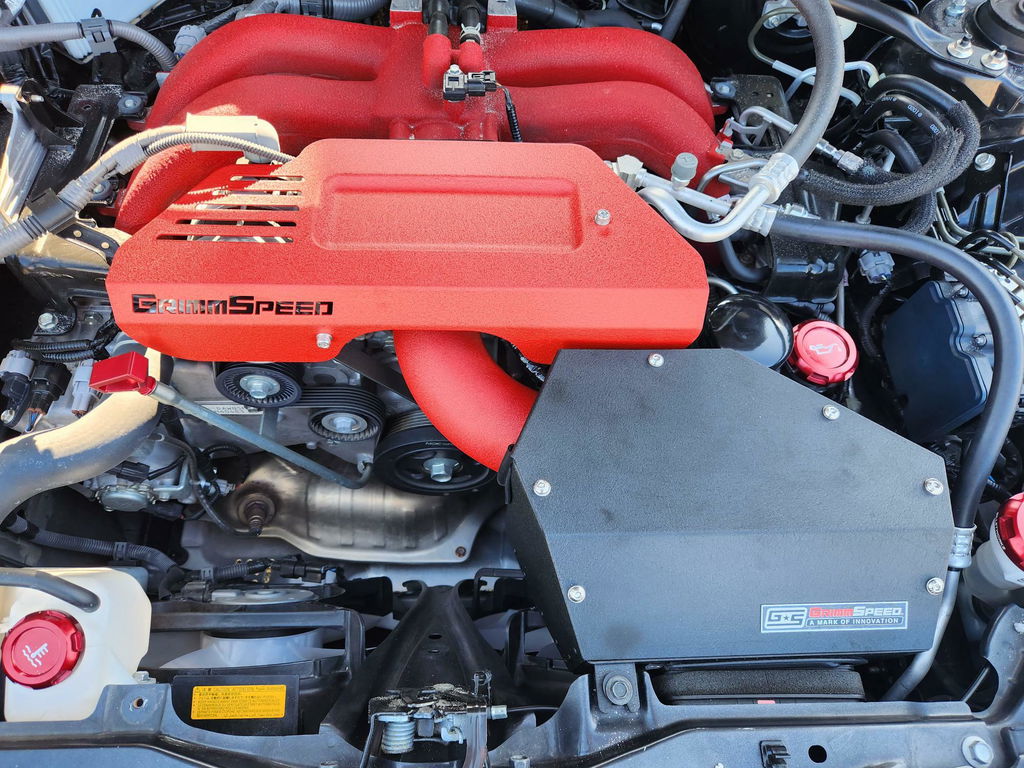

The CAI cleans up all the clutter in the engine compartment from the factory air cleaner assembly.
