SpeedFactory Racing B-Series Mechanical Fuel Pump & Cam Trigger Combo Bracket | 1994-2001 Acura Integra and 1999-2000 Honda Civic Si (SF-02-100)

1994-2001 Acura Integra and 1999-2000 Honda Civic Si B-Series Mechanical Fuel Pump & Cam Trigger Combo Bracket by SpeedFactory

Finally a simple bolt-on solution that will easily allow anyone to run an efficient and cost-effective mechanical fuel pump - easily supplying you with all of the fuel volume you’ll ever need for your current or future power goals. For reference the Weldon 2345-A electric pump that almost everyone is currently running will run out of flow at about 800-900hp on methanol on a turbo car depending on other variables.

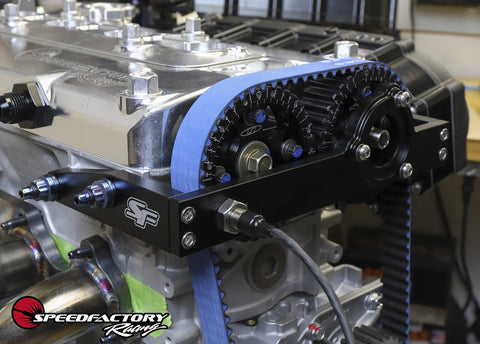

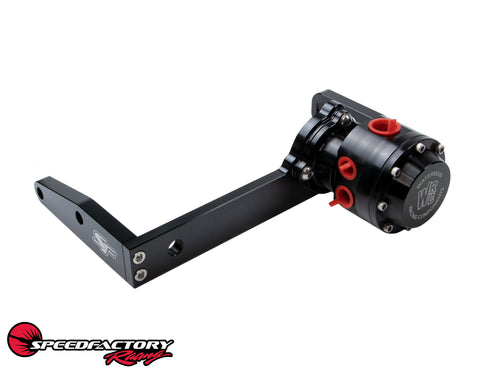

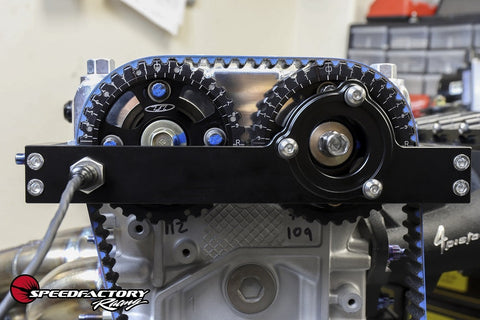

Our bracket fits both B16 & GSR cylinder heads and is constructed of CNC machined 6061-T6 billet aluminum with a durable and stylish black anodized finish with laser-etched SF logo. Full stainless steel hardware and a special cam gear hex bolt to drive the mechanical pump are included.

This is the exact same setup used on our mid 7 second 215+mph Outlaw Civic HB making 2000+hp on methanol.

The largest recommended pump option in the drop down menu above is rated at 6.8gpm at 4000rpm (1850hp on methanol/3600hp on gasoline) by the manufacturer.

Please Note: If you want to make 800-1300hp on methanol or 1300-1700hp on ethanol based fuels than we recommend going down a pump size to the Waterman 500 Sprint Pump or Weldon 34704 (Identical pumps) which are rated at 4.8gpm @ 4000rpm (1300hp on methanol/2500hp on gas).

Features

• Constructed from High-Quality Materials

Applications

• 1989-1991 Honda CRX SiR
• 1989-1994 Honda Civic SiR
• 1992–1994 Honda Civic SiRII
• 1996–1998 Honda Civic SiR
• 1996–1998 Honda Civic SiRI
• 1997–2000 Honda Civic Type R
• 1999-2000 Honda Civic Si
• 1994-1997 Honda Del Sol
• 1992–2001 Acura Integra GS-R
• 1990–2001 Acura Integra RS
• 1990–2001 Acura Integra LS
• 1990–2001 Acura Integra GS
• 2000-2001 Acura Integra Type R
• 1996-2001 Honda CR-V

What's In The Box?

• 1 - Mechanical Fuel Pump/Cam Trigger Combo Bracket

Warranty

• SpeedFactory's Standard Limited Warranty
