SpeedFactory Racing B-Series AWD Offset Reverse Shaft | 1990-2001 Acura Integra, and 1999-2000 Honda Civic Si with AWD Swap (SF-05-601-RS)

1990-2001 Acura Integra, and 1999-2000 Honda Civic Si with AWD Swap B-Series AWD Offset Reverse Shaft by SpeedFactory

Finally available to the public, this product was made to solve reverse gear location differences with different model year B-Series AWD transmission housings when building with a billet bell-housing.

You can now use any year outer transmission housing with no issues!

The SpeedFactory Racing B-Series AWD Offset Reverse Shaft is needed if you are trying to use a mid '00-'01 PBW2 AWD B-Series Outer Transmission Housing with a billet bell-housing (all currently known billet bell housings are PBW1 based) because the reverse gear ratio and shaft spacing was moved in the mid '00-'01 housings.

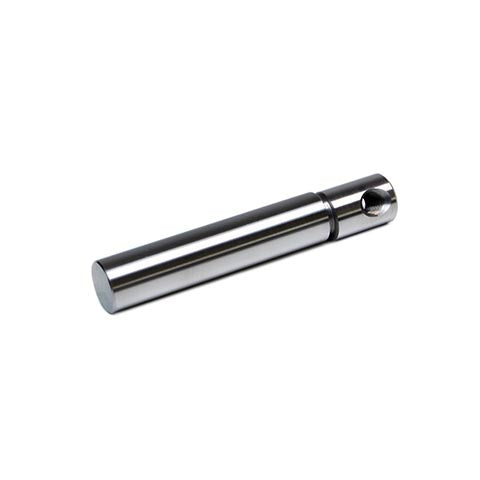

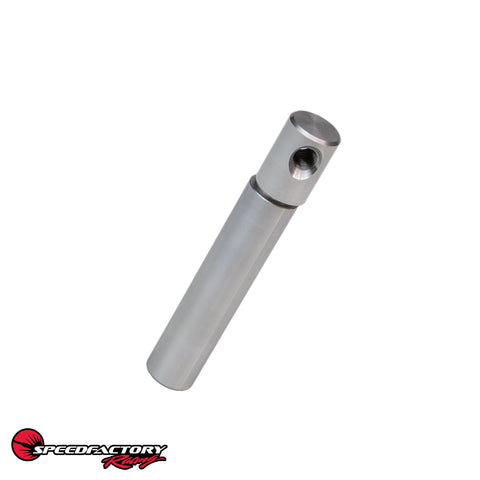

Our precision CNC machined Stainless Steel shaft will retain the correct reverse gear location for any FWD2AWD gearset conversions & aftermarket B-Series AWD gearsets. This retains full reverse gear tooth engagement and allows the later-year outer housings to bolt up properly and is used with our in-house builds including the PPG 1-4 B-AWD Dog Gearset that includes its own 3.076 ratio reverse.

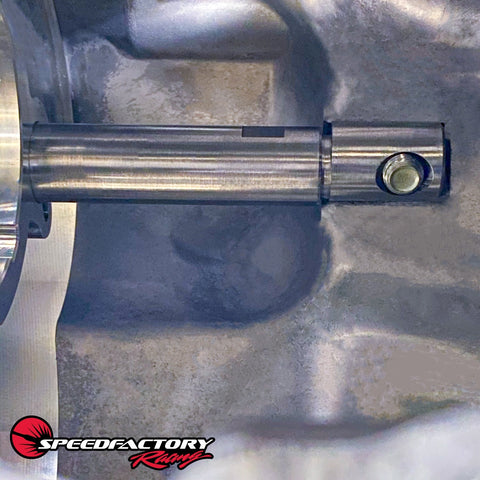

Please Note: If using a ’98 -‘99 outer transmission case that had a straight reverse shaft with the SFR Billet Bellhousing you are good to assemble with the original straight reverse shaft. If using an ’00 outer transmission case that had an offset reverse shaft with the SFR Billet Bellhousing you will need to use the straight reverse shaft (Honda PN#23261-PX5-A00) which was used in ’98, ’99, and ’01 to properly locate the reverse idler gear and for the cases to close properly. If using an ’00 outer transmission case that had a straight reverse shaft with the SFR Billet Bellhousing then you will need our custom offset reverse shaft PN# SF-05-601-RS to properly locate the reverse idler gear and for the cases to close properly. If using an ’01 outer transmission case with the SFR Billet Bellhousing you will need our custom offset reverse shaft PN# SF-05-601-RS to properly locate the reverse idler gear and for the cases to close properly.

Features

• Constructed from high-quality materials

Benefits

• This product was made to solve reverse gear location differences with different model year B-Series AWD transmission housings when building with a billet bell-housing.

Applications

• 1989-1991 Honda CRX SiR
• 1989-1994 Honda Civic SiR
• 1992–1994 Honda Civic SiRII
• 1996–1998 Honda Civic SiR
• 1996–1998 Honda Civic SiRI
• 1997–2000 Honda Civic Type R
• 1999-2000 Honda Civic Si
• 1994-1997 Honda Del Sol
• 1992–2001 Acura Integra GS-R
• 1990–2001 Acura Integra RS
• 1990–2001 Acura Integra LS
• 1990–2001 Acura Integra GS
• 2000-2001 Acura Integra Type R
• 1996-2001 Honda CR-V

What's In The Box?

• 1 - AWD Offset Reverse Shaft

Warranty

• SpeedFactory's Standard Limited Warranty
